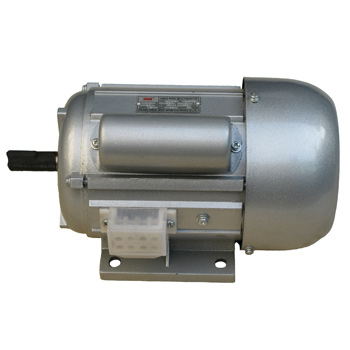

YU Series Electric motor with Resistance start
Features :
Design voltage:220-250V,360-440V£¬620-720V Design frequency:50HZ,60HZ
Model Rated power
(W)		 Rated power
(HP)		 Rated voltage
(V)		 Rated current
(A)		 Speed
(r/min)		 Efficency
(¦Ç%)		 Power Factor Locked-rotor Curren Locked-rotor Torque Max Torque
Rated Current Rated Torque Rated Torque
YU6312 90 0.12 220 1.09 2800 56 0.67 8 1.5 1.8
YU6322 120 0.18 220 1.36 2800 58 0.69 8 1.4 1.8
YU6314 60 0.08 220 1.23 1400 39 0.57 7 1.7 1.8
YU6324 90 0.12 220 1.64 1400 43 0.58 7 1.5 1.8
YU7112 180 0.25 220 1.89 2800 60 0.72 6 1.3 1.8
YU7122 250 0.03 220 2.4 2800 64 0.74 6 1.4 1.8
YU7114 120 0.18 220 1.88 1400 50 0.58 6 1.5 1.8
YU7124 180 0.25 220 2.49 1400 53 0.62 6 1.4 1.8

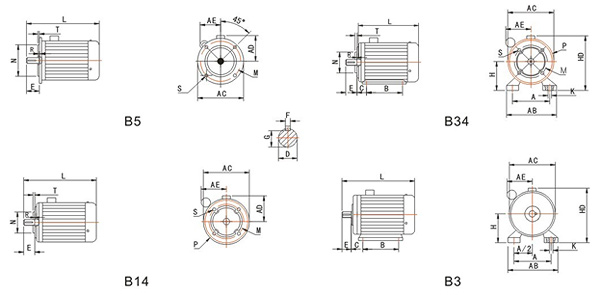

Frame
Size 		B3 Installation size (mm) B34 Installation size (mm) B3¡¢B34 Dimension (mm)
A A/2 B C D E F G H K M N P R S T AB AC AE HD L
50 80 40 63 32 9 20 3 7.2 50 5.8 55 40 70 0 M5 2.5 100 110 55 125 155
56 90 45 71 36 9 20 3 7.2 56 5.8 65 50 80 0 M5 2.5 115 120 65 135 170
63 100 50 80 40 11 23 4 8.5 63 7 75 60 90 0 M5 2.5 130 130 70 165 230
71 112 56 90 45 14 30 5 11 71 7 85 70 105 0 M6 2.5 145 145 95 180 255
80 125 62.5 100 50 19 40 6 15.5 80 10 100 80 120 0 M6 3 160 165 110 200 295
90S 140 70 100 56 24 50 8 20 90 10 115 95 140 0 M8 3 180 185 120 220 310
90L 125 355
100 160 80 140 63 28 60 8 24 100 12 130 110 155 0 M8 4 205 200 130 260 430
112 190 95 140 70 28 60 8 24 112 12 130 110 160 0 M8 4 245 250 140 300 455
132S 216 108 140 89 38 80 10 33 132 12 165 130 200 0 M10 4 280 290 155 350 525
132M 178 565
Frame Size Axis Extension Size (mm) B14 Installation size (mm) B14 Overall Dimension(mm) B5 Installation size (mm) B5 Overall Dimension(mm)
D E F G M N P R S T AC AD AE L M N P R S T AC AD AE L
50 9 20 3 7.2 55 40 70 0 M5 2.5 110 75 55 155 - - - - - - 110 75 60 155
56 9 20 3 7.2 65 50 80 0 M5 2.5 120 80 65 170 - - -- - - - 120 80 75 170
63 11 23 4 8.5 75 60 90 0 M5 2.5 130 100 70 230 115 95 140 0 10 3 130 100 85 230
71 14 30 5 11 85 70 105 0 M6 2.5 145 110 95 255 130 110 160 0 10 3.5 145 110 95 255
80 19 40 6 15.5 100 80 120 0 M6 3 165 120 110 295 165 130 200 0 12 3.5 175 120 110 300
90S 24 50 8 20 115 95 140 0 M8 3 185 130 120 310 165 130 200 0 12 3.5 185 130 120 335
90L 0 335 0 360
100 28 60 8 24 130 110 155 0 M8 4 200 180 130 430 215 180 250 0 15 4 220 180 130 430
112 28 60 8 24 130 110 160 0 M8 4 250 190 140 455 215 180 250 0 15 4 250 190 140 455
132S 38 80 10 33 165 130 200 0 M10 4 290 210 155 525 265 230 300 0 15 4 290 210 155 525
132M 38 0 565 0 565
