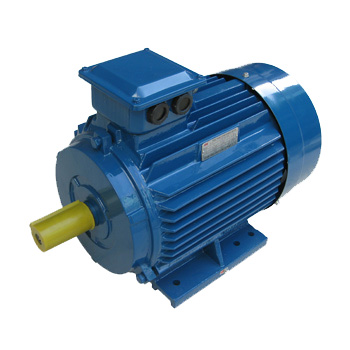

Y2 series 6-pole three phase asynchronous motor(Iron)
Features :
Design voltage:220-250V,360-440V，620-720V Design frequency:50HZ,60HZ
Model Rated power
(KW)		 Rated power
(HP)		 Rated voltage
(V)		 Rated current
(A)		 Speed
(r/min)		 Efficency
(η%)		 Power Factor Locked-rotor Current Locked-rotor Torque Max Torque
Rated Current Rated Torque Rated Torque
Y2-8016 0.37 0.5 220/380 1.3 890 62 0.7 4.7 1.9 2
Y2-8026 0.55 0.75 220/380 1.7 890 65 0.72 1.7 1.9 2
Y2-90S-6 0.75 1 220/380 2.23 910 69 0.72 5.5 2 2.1
Y2-90L-6 1.1 1.5 220/380 3.1 910 72 0.73 5.5 2 2.1
Y2-100L-6 1.5 2 220/380 3.89 940 76 0.75 5.5 2 2.1
Y2-112M-6 2.2 3 220/380 5.46 940 79 0.76 6.5 2 2.1
Y2-132S-6 3 4 220/380 7.1 960 81 0.76 6.5 2.1 2.1
Y2-132M1-6 4 5.5 380/660 9.3 960 82 0.76 6.5 2.1 2.1
Y2-132M2-6 5.5 7.5 380/660 12.3 960 84 0.77 6.5 2.1 2.1
Y2-160M-6 7.5 10 380/660 16.7 970 86 0.77 6.5 2 2.1
Y2-160L-6 11 15 380/660 23.6 970 87.5 0.78 6.5 2 2.1
Y2-180L-6 151 20 380/660 30.7 970 89 0.81 7 2 2.1
Y2-200L1-6 18.5 25 380/660 37.7 970 90 0.81 7 2.1 2.1
Y2-200L2-6 22 30 380/660 44.1 970 90 0.83 7 2.1 2.1
Y2-225M-6 30 40 380/660 58.4 980 91.5 0.84 7 2 2.1
Y2-250M-6 37 50 380/660 70.4 980 92 0.86 7 2.1 2.1
Y2-280S-6 45 60 380/660 85.4 980 92.5 0.86 7 2.1 2
Y2-280M-6 55 75 380/660 103.3 980 92.8 0.86 7 2.1 2
Y2-315S-6 75 100 380/660 140.2 990 93.5 0.86 7 2 2
Y2-315M-6 90 125 380/660 167 990 93.8 0.86 7 2 2
Y2-315L1-6 110 150 380/660 202.3 990 94 0.86 6.7 2 2
Y2-315L2-6 132 180 380/660 242.3 990 94.2 0.87 6.7 1.9 2
Y2-355M1-2 160 220 380/660 292 990 94.5 0.87 6.7 1.9 2
Y2-355M2-6 200 270 380/660 365 990 94.7 0.88 6.7 1.9 2
Y2-355L-6 250 340 380/660 455 990 94.9 0.88 6.7 1.9 2
2-pole EFF2 EFF1
(KW)
0.55 73 74.5
0.75 75 77.5
1.1 76.2 82.8
1.5 78.5 84.1
2.2 81.0 85.6
3 82.6 86.7
4 84.2 87.6
5.5 85.7 88.6
7.5 87.0 89.5
11 88.4 90.5
15 89.4 91.3
18.5 90.0 91.8
22 90.5 92.2
30 91.4 92.9
37 92.0 93.3
45 92.5 93.7
55 93.0 94.0
75 93.6 94.6
90 93.9 95.0
110 94 95
132 94.5 95.4
160 94.6 95.4
200 94.8 95.4
4-pole EFF2 EFF1
(KW)
0.55 71 80.7
0.75 73 82.3
1.1 76.2 83.8
1.5 78.5 85
2.2 81.0 86.4
3 82.6 87.4
4 84.2 88.3
5.5 85.7 89.2
7.5 87.0 90.1
11 88.4 91
15 89.4 91.8
18.5 90.0 92.2
22 90.5 92.6
30 91.4 93.2
37 92.0 93.6
45 92.5 93.9
55 93.0 94.2
75 93.6 94.7
90 93.9 95.0
110 94.5 95.4
132 94.8 95.4
160 94.9 95.4
200 94.9 95.4
6-pole EFF2 EFF1
(KW)
0.55 65 75.4
0.75 69 77.7
1.1 72 79.9
1.5 76 81.5
2.2 79 83.4
3 81 84.9
4 82 86.1
5.5 84 87.4
7.5 86 89
11 87.5 90
15 89 91
18.5 90 91.5
22 90 92
30 91.5 92.5
37 92 93
45 92.5 93.5
55 92.8 93.8
75 93.5 94.2
90 93.8 94.5
110 94 95
132 94.2 95
160 94.5 95
200 94.5 95

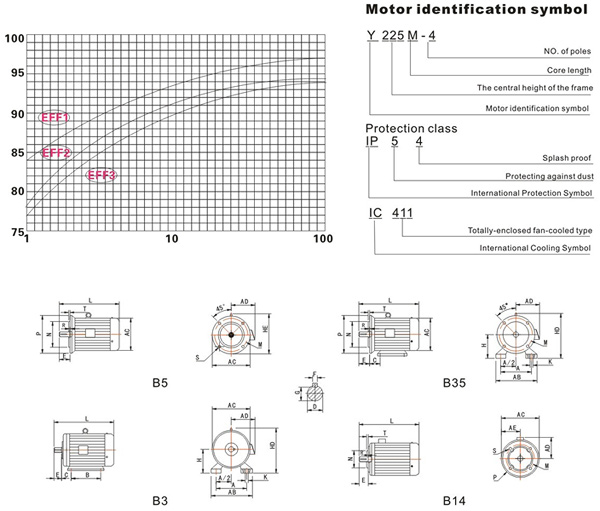

Frame Size B14 Installation size (mm) Overall Dimension (mm)
M N P R S T AB AD AC HD L HE
Y263 75 60 90 0123 M5 3 135 70 130 180 225 130
Y271 85 70 105 0 M6 3.5 150 80 145 195 250 145
Y、Y280 100 80 120 0 M6 3.5 165 150 175 175 290 185
Y、Y290S 115 95 140 0 M8 3.5 180 160 195 195 315 195
Y、Y290L 340
Y、Y2100L 130 110 155 0 M8 4 205 180 215 245 380 245
Y、Y2112M 130 110 160 0 M8 4 245 190 245 265 400 265
Y、Y2132S 165 130 200 0 M10 4 280 210 275 315 475 315
Y、Y2132M 515
Frame Size B3 Installation size (mm) B5 Installation size (mm) Overall Dimension (mm)
H A B C D E F G K M N P R S T AB AD AC HD L HE
Y263 63 100 80 40 11 23 4 8.5 7 115 95 140 0 10 3 135 70 130 180 225 130
Y271 71 112 90 45 14 30 5 11 71 130 110 160 0 10 3.5 150 80 145 195 250 145
Y、Y280 80 125 100 50 19 40 6 15.5 10 165 130 200 0 12 3.5 165 150 175 175 290 185
Y、Y290S 90 140 100 56 24 50 8 20 10 165 130 200 0 12 4 180 160 195 195 315 195
Y、Y290L 125 3.5 340
Y、Y2100L 100 160 140 63 28 60 8 24 12 215 180 250 0 15 4 205 180 215 245 380 245
Y、Y2112M 112 190 140 70 28 60 8 24 12 215 180 250 0 15 4 245 190 245 265 400 265
Y、Y2132S 132 216 140 89 38 80 10 33 12 265 230 300 0 15 4 280 210 275 315 475 315
Y、Y2132M 178 515
Y、Y2160M 160 254 210 108 42 110 12 37 15 300 250 350 0 19 5 330 265 335 385 605 385
Y、Y2160L 254 650
Y、Y2180M 180 279 241 121 48 110 14 42.5 15 300 250 350 0 19 5 355 285 380 430 670 430
Y、Y2180L 279 710
Y、Y2200L 200 318 305 133 55 110 16 49 19 350 300 400 0 19 5 395 315 420 475 775 480
Y、Y2225S 225 356 286 149 60 140 18 53 19 400 350 450 0 19 5 435 345 475 530 820 535
Y、Y2225M 2P 311 55 110 16 49 815
Y、Y2225M 4P 60 140 18 53 845
6P
Y、Y2250M 2P 250 406 349 168 60 140 18 53 24 500 450 550 0 19 5 490 285 515 575 930 650
Y、Y2250M 4P 65 58
6P
Y、Y2280S 2P 280 457 368 190 65 140 18 58 24 500 450 550 0 19 5 550 410 585 640 1000 720
Y、Y2280S 4P 70 20 67.5
6P
Y、Y2280M 2P 280 457 419 190 65 140 18 58 24 500 450 550 0 19 5 550 410 585 640 1050 720
Y、Y2280M 4P 75 20 67.5
6P
Model B3 Installation size(mm) B5 Installation size (mm) Overall Dimension(mm)
H A B C D E F G K M N P R S T AB AD AC HD L HE
Y、Y2315S 2P 315 508 406 216 65 140 18 58 28 600 550 660 0 19 6 628 576 645 865 1240 845
Y、Y2315S 4P 315 508 406 216 80 170 22 71 28 600 550 660 0 19 6 628 576 645 865 1270 845
6P 315 508 406 216 80 170 22 71 28 600 550 660 0 19 6 628 576 645 865 1270 845
Y、Y2315M 2P 315 508 457 216 65 140 18 58 28 600 550 660 0 19 6 628 576 645 865 1310 845
Y、Y2315M 4P 315 508 457 216 80 170 22 71 28 600 550 660 0 19 6 628 576 645 865 1340 845
6P 315 508 457 216 80 170 22 71 28 600 550 660 0 19 6 628 576 645 865 1340 845
Y、Y2315L 2P 315 508 508 216 65 140 20 58 28 600 550 660 0 19 6 628 576 645 865 1310 845
Y、Y2315L 4P 315 508 508 216 80 170 25 71 28 600 550 660 0 19 6 628 576 645 865 1340 845
6P 315 508 508 216 80 170 25 71 28 600 550 660 0 19 6 628 576 645 865 1340 845
Y、Y2355M 2P 355 610 560 254 75 140 20 67.5 28 740 680 800 0 24 6 740 680 750 1035 1540 1010
Y、Y2355M 4P 355 610 560 254 95 170 25 86 28 740 680 800 0 24 6 740 680 750 1035 1570 1010
6P 355 610 560 254 95 170 25 86 28 740 680 800 0 24 6 740 680 750 1035 1570 1010
Y、Y2355L 2P 355 610 630 254 75 140 20 67.5 28 740 680 800 0 24 6 740 680 750 1035 1540 1010
Y、Y2355L 4P 355 610 630 254 95 170 25 86 28 740 680 800 0 24 6 740 680 750 1035 1570 1010
6P 355 610 630 254 95 170 25 86 28 740 680 800 0 24 6 740 680 750 1035 1570 1010
