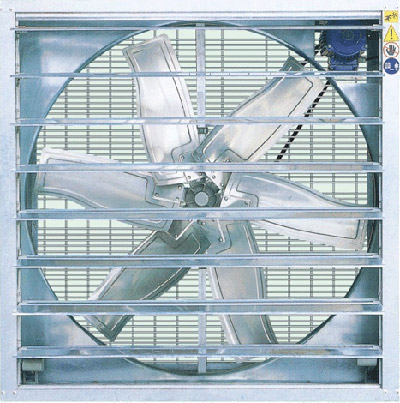

A. frame is galvanized steel sheet, the use of advanced automatic processing technology is made of high accuracy, corrosion resistance and so on.
B. high-strength aluminum alloy wheels, a new twist punch forming blades; reasonable blade angle, the maximum air flow rate can be achieved;
C. high-precision micro-computer aided manufacturing system allows fans to maximize effectiveness; 5 strict quality control procedures: the noise testing, vibration testing, performance testing concentric rotation, fan speed detection efficiency of the unit test; high-performance anti-380V 3 special motor;
D. iron set by the wind device, the rear safety net for easy removal; CAD optimal design.
Product Feature:
¡¡¡¡Low noise, large air volume, low power consumption, cooling effect is obvious; can hair, but also ventilation.
¡¡¡¡Product Type: GLT- 750 GLT-1000 GLT-1250 GLT-1400
Applications:
¡¡¡¡For high temperature or smell of the industrial production plant, such as chemical textile mills, electronics plants, machinery plants, etc., can also be used for job or full cooling ventilation, such as shopping malls, supermarkets, hospitals, stations and so on.
| Model |
Voltage V |
Power KW |
Blade diameter MM |
Fan speed R/MIN |
Clik speed R/MIN |
Wind M3/H |
Pressure PA |
Noise DB |
Frame size MM |
| TG-750 |
380 |
0.75 |
750 |
960 |
960 |
14800 |
60 |
¡Ü70 |
820x820x380 |
| TG-1000 |
380 |
0.75 |
1000 |
600 |
1400 |
35000 |
70 |
¡Ü70 |
1100x1100x400 |
| TG-1250 |
380 |
1.1 |
1250 |
439 |
1400 |
44000 |
56 |
¡Ü70 |
1380x1380x400 |
| TG-140 |
380 |
1.5 |
1400 |
439 |
1400 |
55800 |
60 |
¡Ü70 |
1536x1536x400 |
