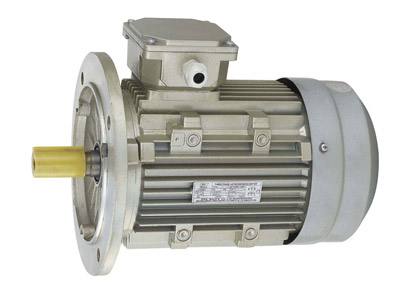

Y2 series 2-pole three phase asynchronous motor

Model	Rated power (KW)	Rated power (HP)	Rated voltage (V)	Rated current (A)	Speed (r/min)	89Efficency (η%)	Power Factor	Locked-rotor Curren	7Locked-rotor Torque	1Max Torque
								Rated Current	Rated Torque	Rated Torque
Y2-6312	0.18	0.25	220/380	0.51	2720	65	0.8	5.5	2.2	2.2
Y2-6322	0.25	0.33	220/380	0.67	2720	68	0.81	5.5	2.2	2.2
Y2-7112	0.37	0.5	220/380	0.98	2740	70	0.81	6.1	2.2	2.2
Y2-7122	0.55	0.75	220/380	1.33	2740	73	0.82	6.1	2.2	2.2
Y2-80M1-2	0.75	1	220/380	1.8	2830	73	0.84	7	2.2	2.3
Y2-80M2-2	1.1	1.5	220/380	2.5	2830	76	0.86	7	2.2	2.3
Y2-90S-2	1.5	2	220/380	3.4	2840	79	0.87	7	2.2	2.3
Y2-90L-2	2.2	3	220/380	4.7	2840	82	0.88	7	2.2	2.3
Y2-100L-2	3	4	220/380	6.4	2870	82	0.88	7	2.2	2.3
Y2-112M-2	4	5.5	380/660	8.2	2890	85	0.89	7	2.2	2.3
Y2-132S1-2	5.5	7.5	380/660	10.7	2900	86	0.89	7.5	2.2	2.3
Y2-132S2-2	7.5	10	380/660	14.2	2900	87	0.9	7.5	2.2	2.3
Y2-160M1-2	11	15	380/660	20.9	2930	88	0.9	7.5	2.2	2.23
Y2-160M2-2	15	20	380/660	27.9	2930	89	0.9	7.5	2.2	2.3
Y2-160L-2	18.5	25	380/660	33.9	2930	90	0.9	7.5	2.2	2.3
Y2-180M-2	22	30	380/660	40.5	2940	90	0.9	7.5	2	2.3
Y2-200L1-2	30	40	380/660	54.8	2950	91.2	0.9	7.5	2	2.3
Y2-200L2-2	37	50	380/660	66.6	2950	92	0.9	7.5	2	2.3
Y2-225M-2	45	60	380/660	81	2970	92.3	0.91	7.5	2	2.3
Y2-250M-2	55	75	380/660	99.6	2970	92.5	0.91	7.5	2	2.3
Y2-280S-2	75	100	380/660	133.3	2970	93	0.91	7.5	2	2.3
Y2-280M-2	90	125	380/660	158.2	2970	93.8	0.92	7.5	2	2.3
Y2-315S-2	110	150	380/660	195.1	2980	94	0.92	7.1	1.8	2.3
Y2-315M-2	132	180	380/660	231.6	2980	94.5	0.92	7.1	1.8	2.3
Y2-315L1-2	160	220	380/660	279.6	2980	94.6	0.92	7.1	1.8	2.3
Y2-315L2-2	200	270	380/660	347.7	2980	94.8	0.92	7.1	1.8	2.3
Y2-355M-2	250	340	380/660	433	2980	95.3	0.92	7.1	1.6	2.3
Y2-355L-2	315	430	380/660	544	2980	95.6	0.92	7.1	1.6	2.3

2-pole	EFF2	EFF1	4-pole	EFF2	EFF1	6-pole	EFF2	EFF1
(KW)			(KW)			(KW)
0.55	73	74.5	0.55	71	80.7	0.55	65	75.4
0.75	75	77.5	0.75	73	82.3	0.75	69	77.7
1.1	76.2	82.8	1.1	76.2	83.8	1.1	72	79.9
1.5	78.5	84.1	1.5	78.5	85	1.5	76	81.5
2.2	81.0	85.6	2.2	81.0	86.4	2.2	79	83.4
3	82.6	86.7	3	82.6	87.4	3	81	84.9
4	84.2	87.6	4	84.2	88.3	4	82	86.1
5.5	85.7	88.6	5.5	85.7	89.2	5.5	84	87.4
7.5	87.0	89.5	7.5	87.0	90.1	7.5	86	89
11	88.4	90.5	11	88.4	91	11	87.5	90
15	89.4	91.3	15	89.4	91.8	15	89	91
18.5	90.0	91.8	18.5	90.0	92.2	18.5	90	91.5
22	90.5	92.2	22	90.5	92.6	22	90	92
30	91.4	92.9	30	91.4	93.2	30	91.5	92.5
37	92.0	93.3	37	92.0	93.6	37	92	93
45	92.5	93.7	45	92.5	93.9	45	92.5	93.5
55	93.0	94.0	55	93.0	94.2	55	92.8	93.8
75	93.6	94.6	75	93.6	94.7	75	93.5	94.2
90	93.9	95.0	90	93.9	95.0	90	93.8	94.5
110	94	95	110	94.5	95.4	110	94	95
132	94.5	95.4	132	94.8	95.4	132	94.2	95
160	94.6	95.4	160	94.9	95.4	160	94.5	95
200	94.8	95.4	200	94.9	95.4	200	94.5	95
